PWM Solar Charge Controller
SUYEEGO SC-ZT 12v/24v PWM Solar Charge Controller 10A 20A 30A 40A 50A 60A Solar System

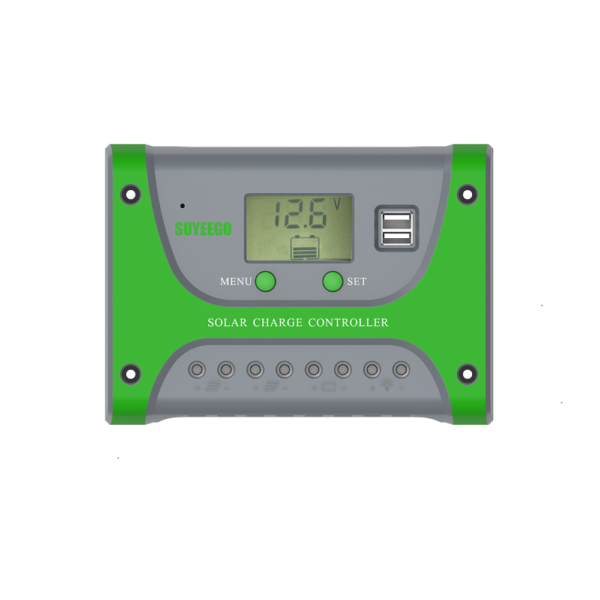

SUYEEGO SC-ZT 12v/24v PWM Solar Charge Controller
10A 20A 30A 40A 50A 60A Solar System
Product Description
- 12V/24V, automatic identification voltage
- Support lead-acid battery / gel battery, lithium battery, and user-defined battery
- Max pv input voltage 100V
- Max Charging Current 10A/20A/30A/40A/50A/60A
- PWM Solar charge controller
Product Paramenters
| System voltage | 12V/24Auto |
| No-load loss | ≤0.4W |
| Max. solar input voltage | 100V |
| Battery voltage | 12V/24V |
| Charging control mode | PWM |
| Rated charging current | 10/20/30/40/50/60A |
| Rated load current | 10/20/30/40/50/60A |
| Max. photovoltaic system input power |
12V -130W/260W/390W/520W/650W/780W
24V -260W/520W/780W/1040W/1300W/1560W |
